Easy Rack Evolucion Shelving
The Easy Rack Evolucion shelving system from Kimer is a manual loading system with a very attractive design that incorporates the latest technological advances. Kimer has designed a system with multiple profile sections using the latest profiling technology called clinch.
This system allows the profile to be completely closed without using any type of welding. Although it is a manual loading system, it can make full use of the warehouse height by accessing the upper levels via walkways placed between the shelves.
The Easy Rack Evolution shelving includes Biosafe antibacterial paint. This paint releases silver particles throughout the product’s lifespan, thus preventing the spread of the most common bacteria..
Advantages
Discover the advantages of our Easy Rack Evolucion shelving: versatility, easy assembly, and maximum efficiency to organize your products quickly
- Excellent aesthetic finish with hidden upright perforations
- Tool-free assembly
- Easy to change levels and expand
- Wide variety of finishes and accessories
- Narrowest beam on the market but with high storage capacity
- Connectors with double support ensure system stability
- Very competitive price and low maintenance cost
- Product tested by the Polytechnic University of Valencia.
Practical Applications
- Ideal product for professional warehouses to store light to medium loads from 50 kg up to 350 kg
- Work areas requiring industrial storage systems
- Retail points where product storage is exposed
- Useful as commercial or display shelving thanks to the large number of available accessories
- Option available with elevated aisles to maximize available height

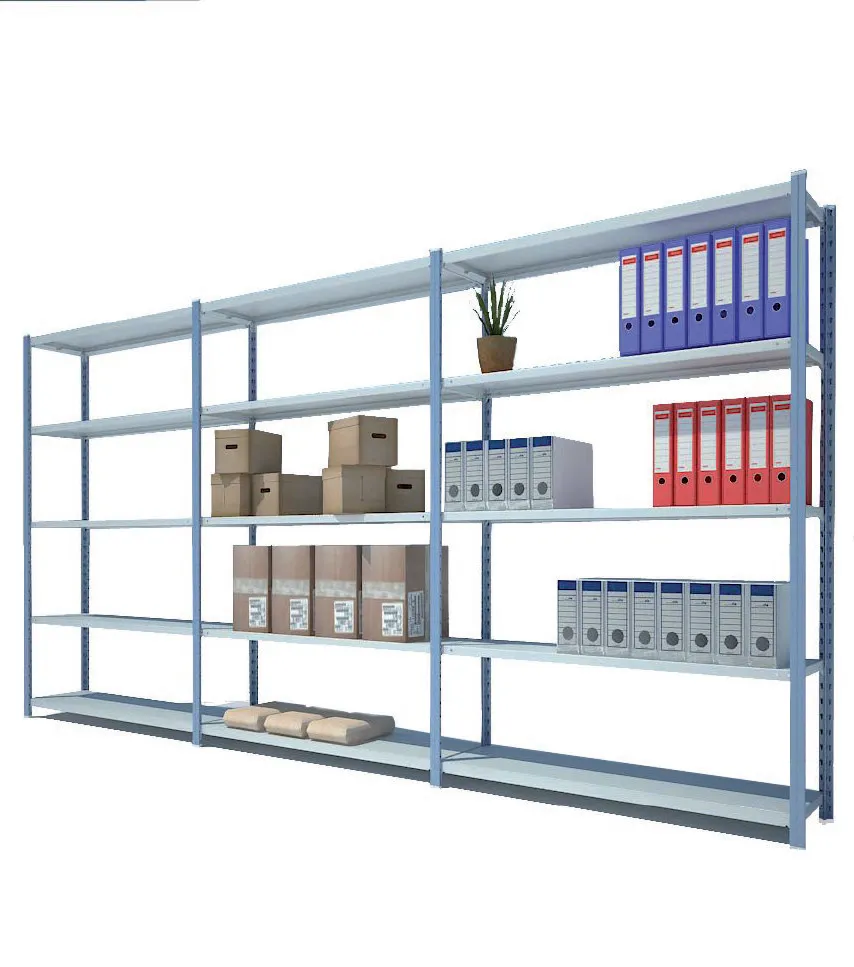

Why Choose Kimer?
01. UPRIGHTS
- The perforations are hidden.
- Four upright models.
- Up to 3,200 kg load capacity per module.
- Fully enclosed upright with no welds
02. SHELVES
Kimer shelves feature three longitudinal folds and two transverse folds
03. ACCESSORIES
From metal drawers, dividers, side panels, to back panels… Everything you can imagine is possible.
04. FINISHES
Different finishes, all mutually compatible, featuring Kimer Biosafe paint: an antibacterial coating
05. EASY ACCESS
No bracing required, allowing access from both sides
06. EASY ASSEMBLY
Highly stable shelving that requires no screws for assembly.

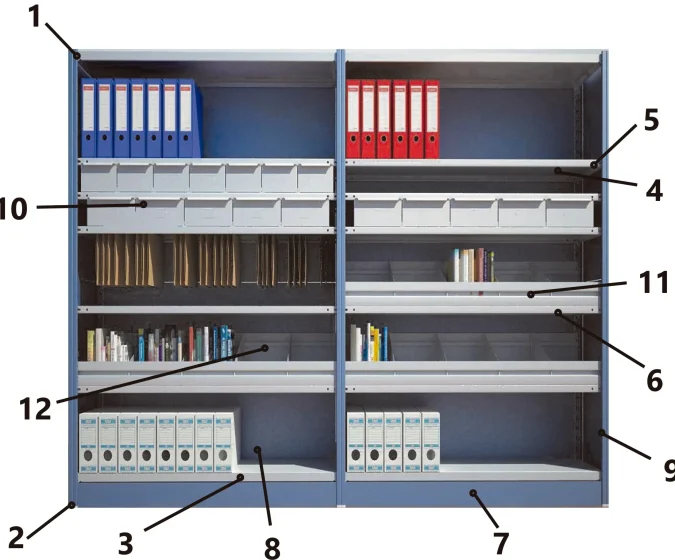

System Components
01. Uprights
02. Foot base
03. Beams
04. Shelf
05. Support
06. Reinforcement
07. Skirting
08. Back panel
09. Side panels
10. Drawers
11. Retainer
12. Dividers

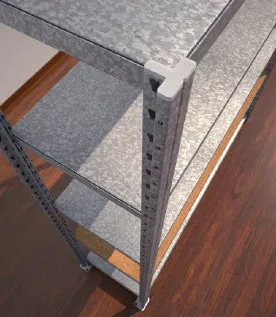

Upright
T-shaped uprights with multiple folds for greater strength. They feature a sequence of holes that allows beams to connect at 25 mm or 50 mm intervals, depending on the model.
The uprights offer a clean finish with no perforations on the front face.
There are three T upright models available for Easy Rack:
- TX: Closed T-profile with 50 mm pitch
- TS: Open T-profile with 50 mm pitch
- TM: Semi-closed T-profile with 25 mm pitch
- TG: Closed T-profile with 50 mm pitch
Beams
In the Easy Rack system, beams serve a dual purpose:
- They brace the structure, eliminating the need for screws or diagonal bracing
- They support both metal shelves and chipboard levels.
VT Cross beams
Cross beams are placed between two Easy Rack uprights to set the shelf depth. At least 4 units must be installed per shelving module (two at the top and two at the bottom). For taller modules, more beams may be required to properly brace the structure.
In addition to bracing, VT beams act as supports for shelves or boards. If higher shelf load capacity is needed, ECS or ECM shelves require these beams for reinforcement placement.
Available with slot for reinforcements.
Available with central slot to place two shelves at the back.
Easy Rack Upright Models
Upright foot
Kimer offers two models:
Plastic Base: Features a non-slip layer to prevent accidental movement. It can also be used as a top cap.
Metal Base: Allows the shelving to be anchored for extra stability and to prevent movement.
Supports
Double-support connector ensures optimal load distribution.
Longitudinal beams
These beams brace the shelving unit lengthwise and also serve as supports for Kimer’s metal shelves or chipboard.
At least 4 units are needed: two at the top and two at the bottom. Depending on the height and whether the module is a starter or an extension, additional beams may be required.
They help increase ECM shelf capacity by reinforcing both front and rear edges, allowing higher load limits.

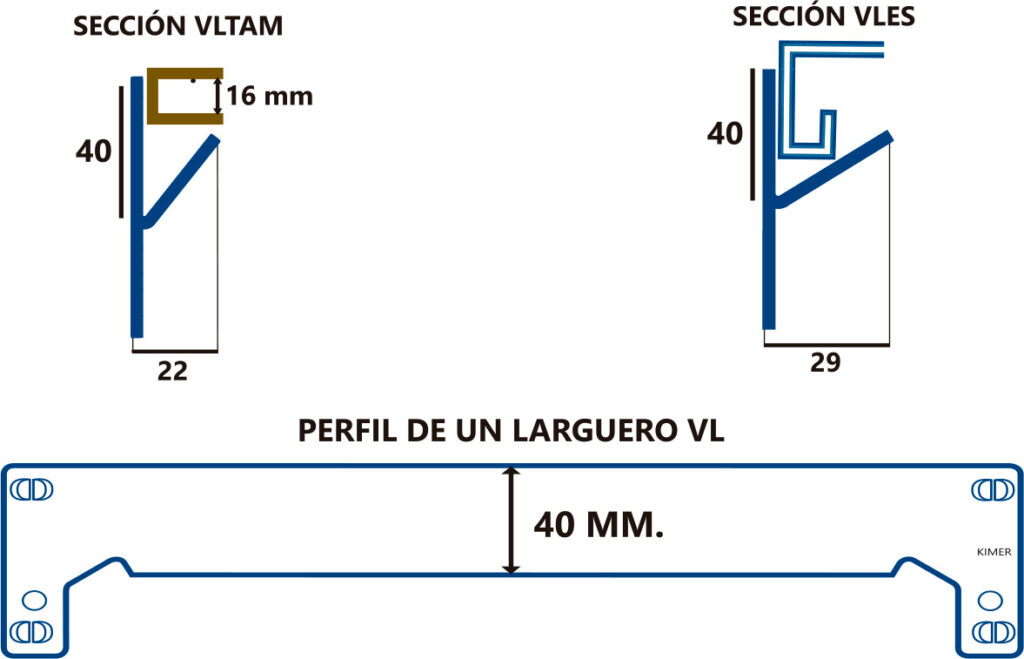

Kimer offers two models of longitudinal beams, both with only 40 mm height:
VLES: :Bending angle designed to fit ECS and ECM metal shelves
VLTAM: Its folding angle has been designed to use a 16 or 19 mm board.
Finishes
Galvanized
Kimer only uses galvanized steel of grade Z275 or higher. This quality offers a higher zinc content, providing the best protection against oxidation under normal indoor conditions.
Biosafe paint
This paint contains an antimicrobial agent that inhibits and destroys the ability of cells to function, preventing the growth of harmful bacteria on the treated surface. Based on a natural, non-toxic, and eco-friendly silver component that lasts for the entire lifecycle of the powder coating. It fights and eliminates bacteria through a trimodal effect:
- Inhibits respiration at the cell wall
- Inhibits cell reproduction
- Disrupts cell metabolism
PAINTED FINISH
(RAL 5003)
GALVANIZED FINISH
TEXTURED BIOSAFE

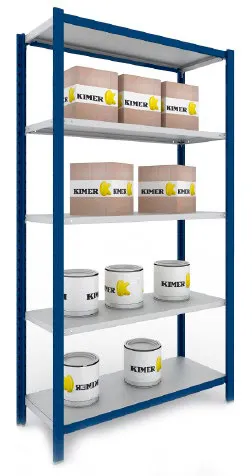

PAINTED FINISH
Blue RAL 5003: Uprights and VL beams
Pre-galvanized: Shelves and VT beams
Textured Blue RAL 5023: Uprights and beams
Galvanized: Uprights, beams, and shelves
Textured Gray RAL 7035: Shelves and beams
Effective against more than 30 bacteria, including Legionella, E.coli, Salmonella, Streptococcus, Listeria, Staphylococcus, etc.
It has a textured finish that adds elegance to the product.
Smooth Epoxy Paint
Kimer uses only high-quality epoxy paint with a gloss finish. We use the most advanced machinery for painting to ensure optimal corrosion protection while maintaining a homogeneous and aesthetic finish.
Shelves
EC Shelves
Kimer shelves feature 3 longitudinal folds and 2 transverse folds, offering excellent structural resistance.
The folds in EC shelves allow for the hanging of folders without needing extra accessories.
There are three EC shelf models: ECS, ECM, and ECM Perforated
Shelf reinforcements
Used to increase shelf load capacity and prevent deformation in the centre.
Must be used with VT beams that have reinforcement slots.

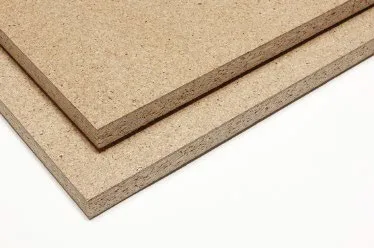

Chipboard panel
Shelves can be combined with 12 mm, 16mm or 19 mm chipboard, requiring VLTAM beams for support.

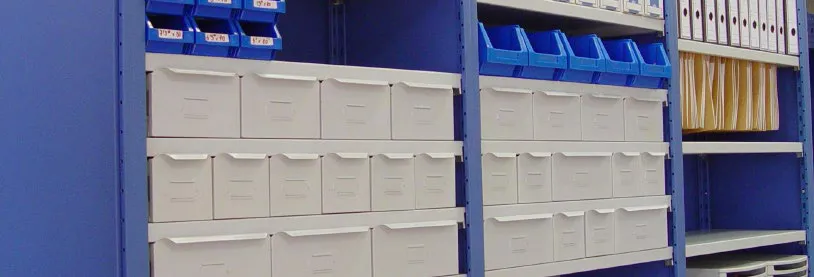

Finishes
Accessories

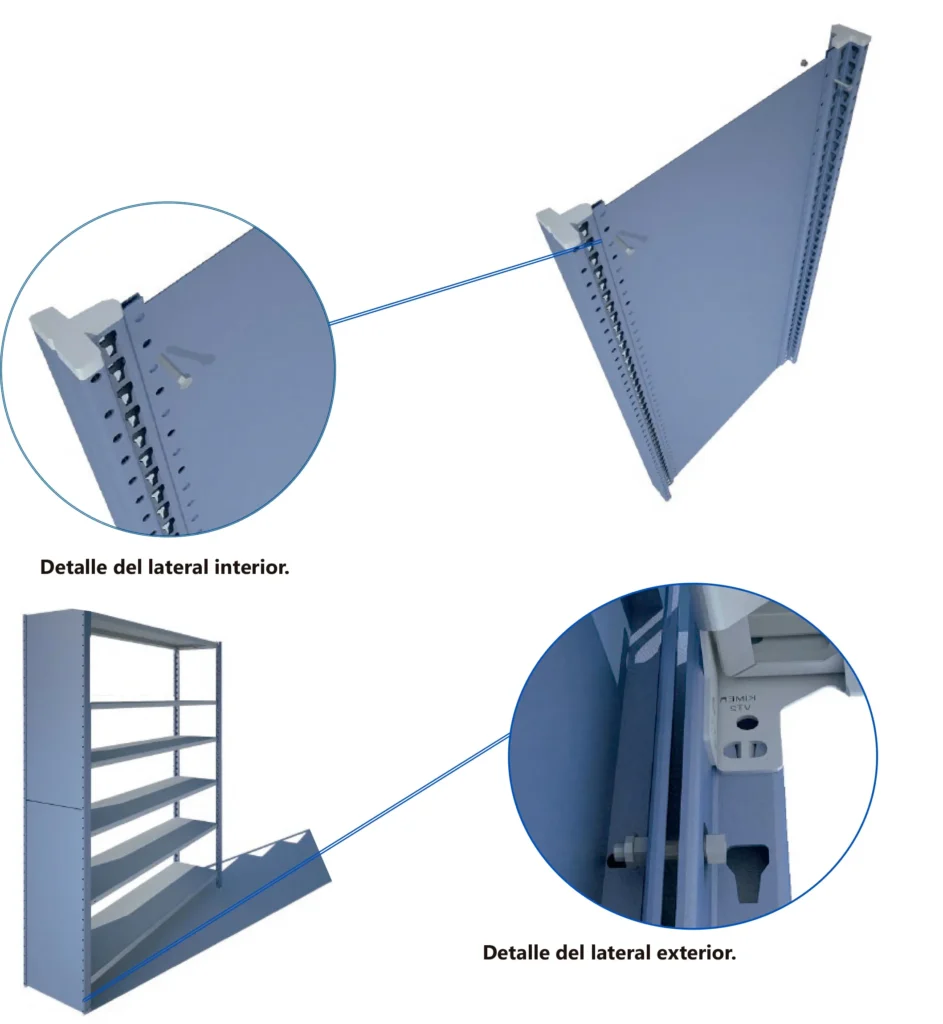

Side panels
EXTERIOR: Can only be installed on the outer ends of shelving units. Compatible with all Easy Rack Evolución upright models.
INTERIOR: Only compatible with TS and TM uprights from the Easy Rack Evolución system.
Drawers
Metal pull-out component for storing compartmentalized goods
Includes a rear stop to prevent accidental drawer removal.
Available for perforated EC shelves with 300 mm or 400 mm depth.
Slat walls
Slat back panels allow placement of various hook models.
No screws are required: the slat panels have tabs that easily fit into the profile slots.
Tube hooks
Dividers
Allow organization or separation of goods stored on Kimer shelves.
Dividers
Two available models:

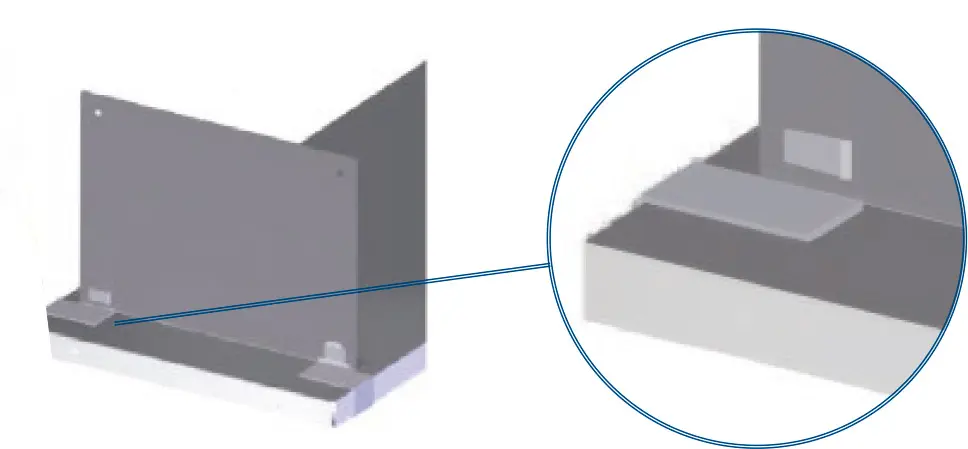

EC divider
EV divider
Vertical divider for Easy Rack shelves. Only compatible with perforated EC shelves, as screws are required for installation.
Kimer has EV divider with depths of 300, 400 mm or 500 mm.
No screws required, and shelves do not need to be perforated.
Kimer has EV divider with a depth of 300 or 400 mm.
Back panels
Metal accessory in painted or pre-galvanized finish. Compatible with all
Easy Rack Evolution uprights. Used to block access to the rear side of the shelving unit.
Skirting
Metal accessory in painted or galvanized finish that bolts to the side of the upright.
Doors
Prevent access to sensitive items with Kimer doors with built-in lock.
Available in four heights and three widths.
Chrome wire hooks
Single
Double
Standard lengths:
200
250
300
Hanging bar support
For clothing storage. The removable bar facilitates easy loading/unloading.
Stoppers with dividers
Metal profiles that act as front or rear shelf stops and allow dividers to be added to subdivide shelf space.
Front stoppers (110mm)
Available in lengths: 900, 1000, 1200 mm
Rear stoppers (210mm)
Available in lengths: 900, 1000 y 1200 mm
Regulations
What is FEM?
An association founded in 1953 whose main objectives include promoting technical standards for the materials handling sector. It consists of approximately 1,000 companies with around 160,000 employees.
Importance of complying with FEM and EUROCODE standards
Ensures the product meets high standards of quality and safety.
For pallet racking, the FEM standard has become an EN standard, which is mandatory legislation across all European countries.
Our load tables comply with the recommendations of FEM 10.2.06 and Eurocode 3.
FEM 10.2.06 Standard
- Shelving covered by this standard is limited to 3 meters in height and cannot support walkways or floors.
- Load factor: 1.4
- Steel reduction factor: 1.0
-
Shelving over 1.6 meters in height, with a height-to-depth ratio of 5:1, must be anchored to the floor.
Example: Shelves 2 meters high and 350 mm deep require anchors.
